Thanks for checking out our 5 part crash course on REPLACEMENT GEARCASES.

We are a company on a mission to help boaters select the best replacement gearcase available. The goal for this course is to provide you with all the information needed to successfully choose the best REPLACEMENT GEARCASE to meet your specific needs.

Replacing a damaged gearcase is one of the most common and most expensive repairs boaters can encounter.  It’s a common repair because the lower unit is easily damaged by hitting hidden objects underwater.  There are lots of repair options available so doing your homework upfront and avoiding the temptation to slap on the first unit you find is smart. You are smart! Know your product and buy from a reputable company that knows your engine inside and out.

So, during this course, I will discuss your replacement choices, give you a few more tips and let you decide what is best for you by the end of the course.

First, let’s go over some definitions and lingo in the outboard and sterndrive arena.  Knowing the basic components of your engine can be a big help when discussing a specific issues with your mechanic, insurance agent or friends. The diagram to the left shows the inner workings of a gearcase.  For this article, we will be dealing with the lower unit components (gearcase), the part that sits below the water line.

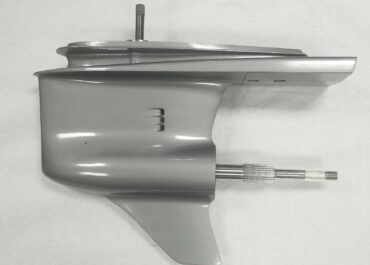

A Gearcase or Lower Unit can be called by many names:


-Gear Housing
-Driveshaft Housing
-Foot
-Lower Housing



parts2

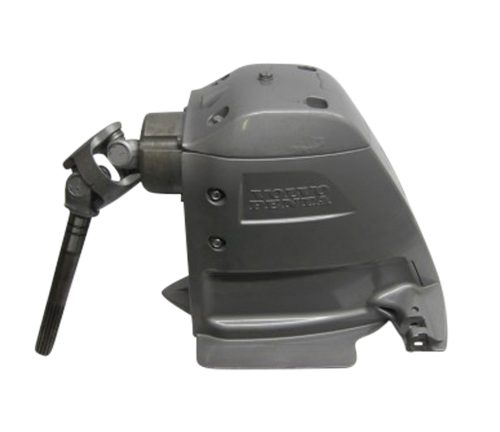

Upper Unit – The upper contains the driveshaft connected through the transom to your engine which transmits power to a gearbox. (Sterndrive only)






Outdrive, drive unit, complete  –  describes the upper and lower unit combined. (Sterndrive only)
Gears/GearBox – section of the lower unit where the gears are located.

Propshaft, propeller shaft or Drive Shaft –  mechanical component for transmitting torque and rotation, usually used to connect other components of a drive train that cannot be connected directly because of distance or the need to allow for relative movement between them.

Splines – ridges on a driveshaft that mesh with grooves in a mating piece and transfer torque.

Clutch – the clutch engages and disengages power transmission from driving shaft to drive shaft. Simply put, clutches connect and disconnect two rotating shafts drive shafts.

Skeg – the lowest point of an outboard or sterndrive motor.
OEM – Original Equipment Manufacturer – that is the manufacturer that made your boat engine has also made the replacement part.  OEM parts made to the exact specs since the original manufacturer has the tools and specs to make this part. Examples of OEM Companies are: Mercury, OMC, Volvo-Penta.

NON-OEM –  aftermarket parts are those made by companies other than the OEM, which might be installed as replacements.


Now that you have all the definitions down pat, our next article will dive into New Non-OEM gearcases. If you want to read ahead, here is the link to our next article.

In the mean time, if you have insurance on your boat, contact your agent to see if your lower unit repair/replacement could be covered by your policy.
